Stand-Alone Use

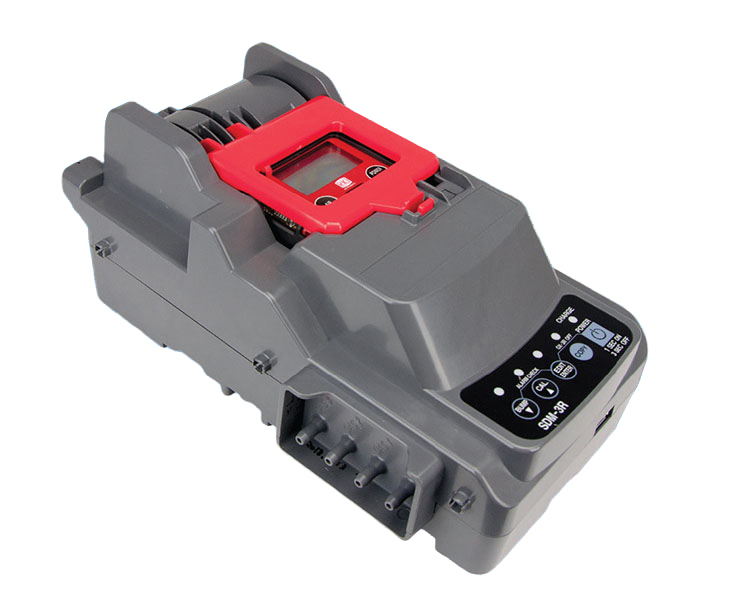

The SDM-3R is a versatile maintenance tool that automates the service of a GX-3R (Pro) portable gas monitor. This docking station can be used as a Stand-Alone device for charging, calibration and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).
Unit of Measure

Brands

 N/A RKI Instruments

Input Power

 N/A AC Adapter with 100 - 240 VAC, 47-63 Hz, 0.4 A input and 2A output provided as standard.

Input Direct Current (DC) Voltage

 N/A 5.99 V

Applicable Instruments

 N/A GX-3R GX-3R Pro

Stand-Alone Number of Maximum Saves Records

 N/A 200 Calibrations 214 Bump Test 469 Alarm Check Records

Personal Computer (PC) Program Controlled Number of Maximum Saves Records

 N/A Unlimited Records

Number of Ports

 N/A 5

Port Types

 N/A 1 Exhaust 1 Fresh Air 3 Calibration Gas

Package Type

 N/A Each

Units Per Package

 N/A 1

Operating Temperature

 N/A 0 to 40 ºC

Non-Condensing Relative Humidity

 N/A Below 95 %

Note for Environmental Conditions

 N/A For Indoor Use Only

N/A

  • AC Adapter
  • USB Flash Drive
  • Inlet Air Filter
  • 10 Foot Long Exhaust Tube
  • One 3 Foot Long Tube for GAS Fitting
  • USB Cable, Type A to Type B

N/A Stand-Alone Use (no PC required)

  • Compatible with both GX-3R and GX-3R Pro
  • Automatically charge, bump test, and/or calibrate
  • Auto on/off of gas detector

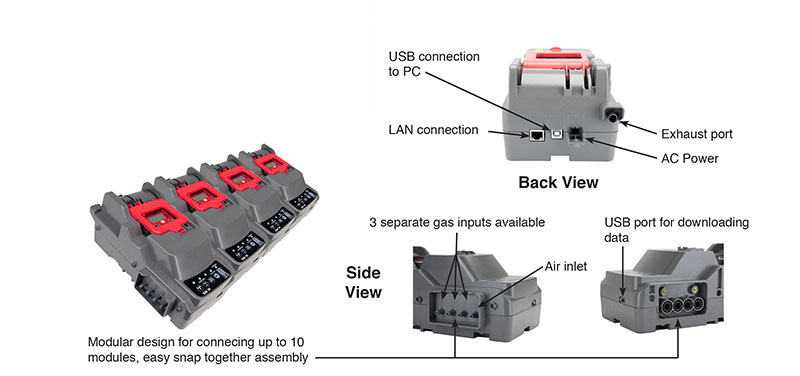

  • 3 separate gas inputs
  • Multiple modules (10 max) can use one set of calibration equipment
  • Save Bump Test, Calibration, and Alarm Check records to USB flash drive, computer, or network
  • Includes PC software for viewing/archiving bump test, calibration records, and event data
PC-Controlled Use
  • Multiple modules connected to a PC (10 max)
  • Automatic calibration/bump test option
  • Configure GX-3R (Pro) parameters
  • Archive Bump Test, Calibration, and Alarm Check
  • Archive data to network location
  • Software controlled data retrieval
  • Windows 7, 8, and 10 compatible

N/A PC-Controlled Use
Automate how you manage and service GX-3R (Pro) instruments by connecting the SDM-3R to a computer with a USB cable. With the SDM Docking Station controller software, you can simultaneously calibrate, bump test, alarm check, archive data, or charge up to ten instruments. You can also download the data logging history from each instrument into one easy to manage location. SDM-3R stations can be manifolded together to reduce the number of demand flow regulators gas cylinders required.
